Home ProductsElectric Aerial Work Platform

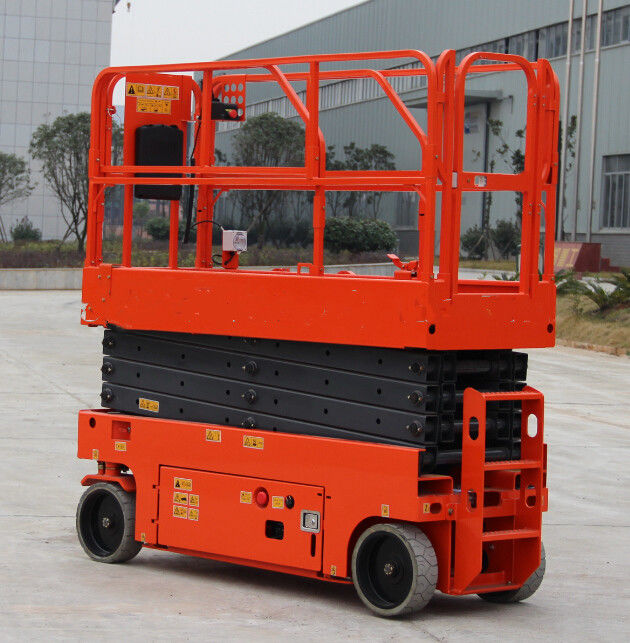

Movable Electric Aerial Work Platform Commercial Electric Hydraulic Scissor Lift

Movable Electric Aerial Work Platform Commercial Electric Hydraulic Scissor Lift

Movable Electric Aerial Work Platform Commercial Electric Hydraulic Scissor Lift

Product Details:

Place of Origin: China
Brand Name: Yamei
Certification: CE, ISO9001, ISO14001
Model Number: JCPT0808DC

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Standard package suitable for container shipment
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 30 units 30 days
Contact Now
Detailed Product Description
Surface: Painting Drive: Electric
Material: Steel Color: Orange
Platform: Extendable Control: Proportional

Electric Scissor Lift Aerial Work Platform Lift Height 6m Electric Drive



Application

The self propelled aerial working platform are designed to improve human aerial working condition.

Excellent for both indoor&outdoor construction, they’re operated ideallyin tight space making it’s easy for any maintenance and installation applications.



Main Parts



The main parts are from famous brand suppliers.



All our platform are stable performance, flexible and smarter operation,more reliable as passed

by endurance test.



Standard features



● Proportional control

● Automatic Pothole Guard System

● Solid non-marking tires

● Auto brake system

● Emergency platform lowering system

● Emergency stop button

● Hour meter

● Motion alarm

● Electronic horn

● Extension platform

● Descent alarm

● Descent protection

● Tilt protection system

● Folding rails

● Protection bar around chassis

● Cylinder holding valve
● Onboard diagnostic system

Flashing Beacon

All Motion Alarm



Movable Electric Aerial Work Platform Commercial Electric Hydraulic Scissor Lift



Production Specification





  Movable Electric Aerial Work Platform Commercial Electric Hydraulic Scissor Lift         Movable Electric Aerial Work Platform Commercial Electric Hydraulic Scissor Lift    Movable Electric Aerial Work Platform Commercial Electric Hydraulic Scissor Lift







Production Specification JCPT0808DC
Measurement
Working Height Max. 8m
A Platform Height Max. 6m
B Platform Height Stowed 1.86m
C Platform Length-outside 2.40m
Extended 3.30m
Slide-out Platform extension deck 0.90m
D Platform Width 0.81m
E Height-stowed: guardrail raised 2.20m
F Length-Stowed 2.43m
G Width 0.87m
H Wheel Base 1.87m
I Ground Clearance 10cm
J With Pothole Guards Deployed 1.9cm

Productivity
Max. Platform Occupancy 2
Lift Capacity 230kgs
Drive speed-stowed 4.0km/h
Drive speed-Raised 0.8km/h
Gradeability 25%
Max. Tilt 3°/ 1.5°
Turning Radius(inside) 0
Turning Radius(outside) 2.19
Raise/lower speed 24/54sec
Non-marking tires Φ381×127

Power
Power Source 24V/3.3KW
Battery 4x6V/225Ah
