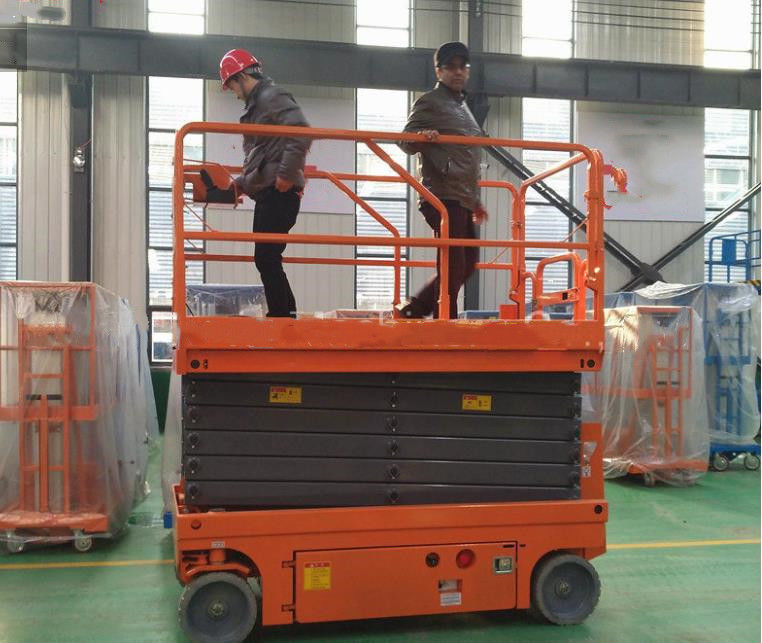

Steel Aerial Boom Lift 13.7m High Strength Electric Hydraulic Scissor Lift

Steel Aerial Boom Lift 13.7m High Strength Electric Hydraulic Scissor Lift

Steel Aerial Boom Lift 13.7m High Strength Electric Hydraulic Scissor Lift

Product Details:

Place of Origin: China
Brand Name: Yamei
Certification: CE, ISO9001, ISO14001
Model Number: JCPT1614HD

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Standard package suitable for container shipment
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 30 units 30 days
Contact Now
Detailed Product Description
Drive: Hydraulic Platform: Extendable
Color: Orange Surface: Painting
Material: Steel Control: Proportional

Self Propelled Scissor Lift Aerial Working Platform 13.7m Hydraulic Drive



Product Advantage



We pass by ISO9001 quality management system and ISO4001 environment management system .

Our products are available with the CE mark conforming compliances with all relevant European Machinery Directives.

All our platform are stable performance, flexible and smarter operation,more reliable as passed

by endurance test.

Our self propelled aerial working platform are designed to improve human aerial working condition.

Excellent for both indoor&outdoor construction, they’re operated ideallyin tight space making it’s easy for any maintenance and installation applications.

The main parts are from famous brand suppliers.



Standard features



● Cylinder holding valve
● Onboard diagnostic system

Flashing Beacon

● Proportional control

● Automatic Pothole Guard System

● Solid non-marking tires

● Auto brake system

● Emergency platform lowering system

● Emergency stop button

● Hour meter

● Motion alarm

● Electronic horn

● Extension platform

● Descent alarm

● Descent protection

● Tilt protection system

● Folding rails

● Protection bar around chassis



Steel Aerial Boom Lift 13.7m High Strength Electric Hydraulic Scissor Lift





Production Specification



 Steel Aerial Boom Lift 13.7m High Strength Electric Hydraulic Scissor Lift          Steel Aerial Boom Lift 13.7m High Strength Electric Hydraulic Scissor Lift     Steel Aerial Boom Lift 13.7m High Strength Electric Hydraulic Scissor Lift





Production Specification JCPT1614HD
Measurement
Working Height Max. 16m
A Platform Height Max. 14m
B Platform Height Stowed 2.06m
C Platform Length-outside 2.84m
Extended 3.74m
Slide-out Platform extension deck 0.90m
D Platform Width 1.39m
E Height-stowed: guardrail raised 2.59m
F Length-Stowed 2.84m
G Width 1.45m
H Wheel Base 1.87m
I Ground Clearance 10cm
J With Pothole Guards Deployed 1.9cm

Productivity
Max. Platform Occupancy 2
Lift Capacity 227kgs
Drive speed-stowed 3.5km/h
Drive speed-Raised 0.8km/h
Gradeability 25%
Max. Tilt 3°/ 2°
Turning Radius(inside) 0
Turning Radius(outside) 2.33
Raise/lower speed 88/60sec
Non-marking tires Φ381×127

Power
Power Source 24V/3.3KW
Battery 4x6V/225Ah
