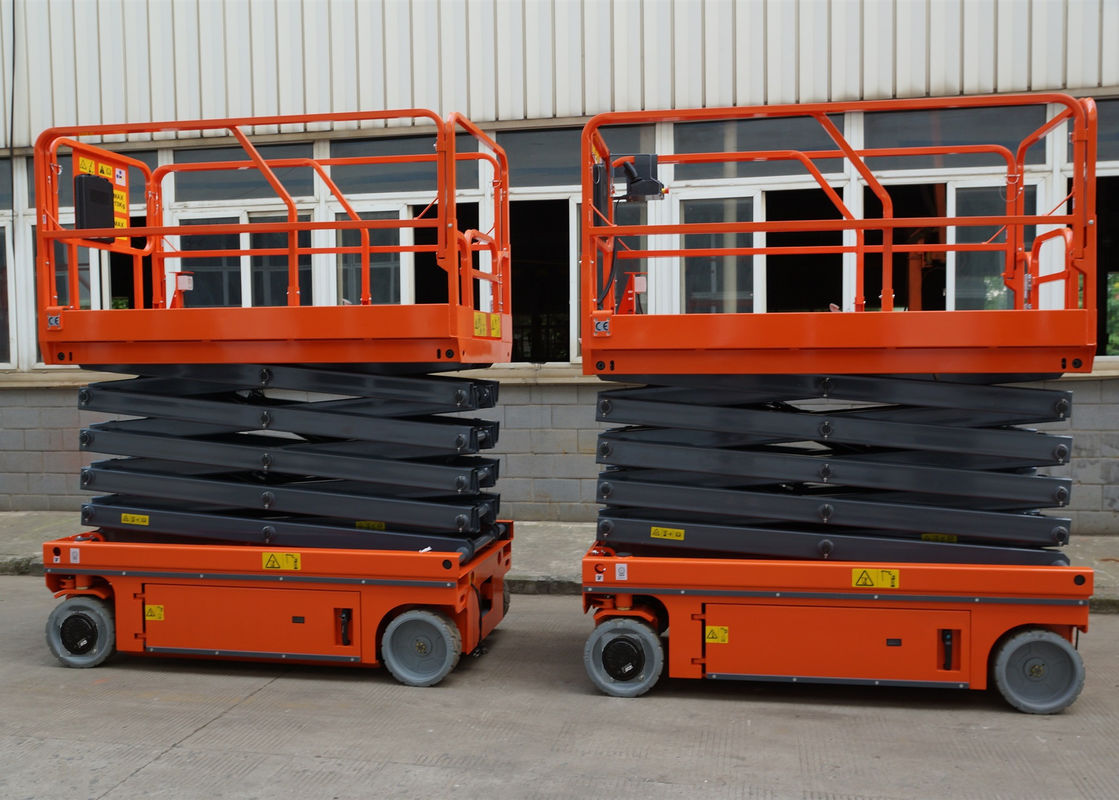

Small Electric Scissor Lift Aerial Work Platform Working Height 10M

Small Electric Scissor Lift Aerial Work Platform Working Height 10M

    • Small Electric Scissor Lift Aerial Work Platform Working Height 10M
    • Small Electric Scissor Lift Aerial Work Platform Working Height 10M
  • Small Electric Scissor Lift Aerial Work Platform Working Height 10M

    Product Details:

    Place of Origin: China
    Brand Name: Yamei
    Certification: CE, ISO9001, ISO14001
    Model Number: JCPT1012DC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiable
    Packaging Details: Standard package suitable for full container shipment
    Delivery Time: 30 working days
    Payment Terms: L/C, T/T
    Supply Ability: 50 units 30 days
    Contact Now
    Detailed Product Description
    Color: Orange(Optional) Safety Working Load: 450KG
    Max. Working Height: 10M Max. Platform Height: 8 M
    Platform Extemsion Size: 0.90M Battery: 4*6V/240AH
    Work Maximum Angle: 2°/3° Drive: Electric

    Mobile Aerial Work Platform Small Electric Scissor Lift Working Height 10m for Painting


    1,Who are we ?


    Hefei Yamei Technology Co.,Ltd has specilized on aerial work platform ( scissor lift ) for many years . Electric scissor lift  is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don't need to connect AC power, and you can let the mobile scissor lift at

    some work areas without power.






    1. The scissors lift tables storage battery as the power source, and makes low noise and no emission when working, so it can be used in indoor occasions such as workshops, warehouses, hotels, etc.
    2. Larger working space: The platform can extend on one side, which can enlarge the working space.
    3. Swing-out battery box and power module trays allow easy access to engine components for convenient service
    4.Scissor platforms offer up to 25% gradeability when driving on slopes with safety protection.
    5. Control box: there are control box not only on the platform but also on the chassis, easy to control.
    6. Safety bar: The safe bar helps to support the unit as a duplicate protection when the machine need some maintenances.
    7. Battery with charger: Trojan brand, import from USA, better service than normal battery.


    Small Electric Scissor Lift Aerial Work Platform Working Height 10M

    Scissor Aerial Work Platform Product Features:

    Lifting mechanism uses high-strength manganess steel rectangular pipe production. Has a safety device to prevent overloading
    of the lifting platform. Security features to prevent hydraulic line valve. Blackouts case of emergency lowering device.


    2,Who trust us ?


                    Small Electric Scissor Lift Aerial Work Platform Working Height 10M


    Our products are EN280 and CE certified,our  products has been exported to more than 30 countries,(especially Europe and North America) enjoying a good reputation.



    3,Why Trust us ?


    The main parts are from famous brand suppliers.For example:



    Small Electric Scissor Lift Aerial Work Platform Working Height 10M


    All our platform are stable performance, flexible and smarter operation,more reliable as passed

    by endurance test.


    Self propelled Scissor Lifts does not need any outriggers, one man operates on the working platform
    Moving forward, turning around and lifting up are easily operated.
    Short chargeable time and long dural time of the battery.
    Easily moved, spacious working platforms, smooth working condition and high working efficiency.


    Safety protection: Horizontal alarm is installed on the machine. When the whole vehicle tilts more than 3 degrees in all directions, the machine automatically enters the protection system. Only when the machine has a descending action, it can be used normally until it is safe. The self-propelled high-altitude working platform is equipped with safety plate device at the bottom of the car. As long as the platform is raised, the safety plates on both sides are opened and in working condition, so as to reduce the distance from the ground, so as to avoid the overturning accident caused by the uneven ground when walking at high altitude. A tubing explosion-proof system is installed at the cylinder.




    Electric drive product  Specifications:

    Electric drive series 3.9m 5.8m 6m 8m narrow 8m 10m 12m 14m
    (Electric drive)
    JCPT 0607 DC JCPT 0807 DC JCPT 0808 DC JCPT 1012 DC JCPT 1008 ZDC JCPT 1212 DC JCPT 1412 DC JCPT 1614 DC
    S. W. L 240KG 230 KG 380 KG 450 KG 230 KG 320 KG 320KG 227 KG
    S.W.L on extensin 100KG 113 KG 113 KG 113 KG 113 KG 113 KG 113 KG 113 KG
    Max. working height 5.9M 7.8M 8M 10M 10M 12M 13.8M 15.70M
    Max. platform height 3.9M 5.8M 6M 8M 8M 10M 11.80M 13.70M
    Overall length 1.44M 1.83M 2.435M 2.435M 2.435M 2.435M 2.435M 2.84M
    Overall width 0.76M 0.81M 0.81M 1.15M 0.81M 1.15M 1.15M 1.39M
    Overall height
    (rails up)
    2.03M 2.1M 2.20M 2 . 32 M 2 . 32 M 2 . 44 M 2 . 58 M 2 . 59 M
    Overall height
    (rails down)
    1.67M 1.79M 1 .87M 1 .78M 1 .89 M 1 .92M 2 .04 M 2 .05 M
    Platform size 1.29M*0.70M 1.63M*0.75M 2.24M*0.81M 2.27M*1.12M 2.27M*0.81M 2.27M*1.12M 2.27M*1.12M 2.64M*1.12M
    Platform extemsion size 0.6M 0.9M 0.9M 0.9M 0.9M 0.9M 0.9M 0.9M
    Drive motor 24V/1KW 24V/1KW 24V/1KW 24V/1.5KW 24V/1.5KW 24V/1.5KW 24V/1.5KW 24V/1.5KW
    Lift motor 24V/1.2KW 24V/3.3W 24V/3.3W 24V/3.3W 24V/3.3W 24V/3.3W 24V/3.3W 24V/4.5W
    Travel speed(stowed) 4KM/H 4.5KM/H 4KM/H 4KM/H 4KM/H 4KM/H 4KM/H 3.5KM/H
    Travel speed(raised) 0.5KM/H 0.8KM/H 0.8KM/H 0.8KM/H 0.8KM/H 0.8KM/H 0.8KM/H 0.8KM/H
    Up/down speed 32/27SEC 27/22SEC 31/67SEC 36/33SEC 42/30SEC 54/42SEC 84/38SEC 88/60SEC
    Battery 2*12V*115AH 4*6V/225AH 4*6V/225AH 4*6V/240AH 4*6V/225AH 4*6V/240AH 4*6V/300AH 4*12V/300AH
    Charger 24V/10A 24V/25A 24V/25A 24V/25A 24V/25A 24V/25A 24V/25A 24V/25A
    Max dimbing ability 30% 25% 25% 25% 25% 25% 25% 25%
    Work maximum angle 2°/3° 2°/3° 2°/3° 2°/3° 2°/3° 2°/3° 2°/3° 2°/3°
    Tire size ¢323MM*100MM ¢323MM*100MM ¢406MM*127MM ¢406MM*127MM ¢406MM*127MM ¢406MM*127MM ¢406MM*127MM ¢381MM*127MM
    G.W 886KG 1515KG 2010KG 2215KG 2140KG 2600KG 2965KG 3500KG


    4,What else we can do?


    New user? No experience? No idea?




    We provide on site training and assembling Assistance for any request customer.






    1,Can you sent samples to check quality?
    Sure,you can order samples according to your demands.


    2,Can you manufacture the products with our brand or our drawing?
    Yes,we accept ODM&OEM orders.

    3,What is your payment term?
    50% of down payment by T/T, 50% by T/T before delivery.

    4.What is your warranty time ?
    One year .Free spare part.

    5,What is your delivery time and packing?

    Yamei Standard package suitable for container shipment.
    The production period is 30 days ,but not include crawler-type scissors lift ,it is need more time. We'll make the shipment to you soon.Accurate delivery time depends on the specific quanntity.
