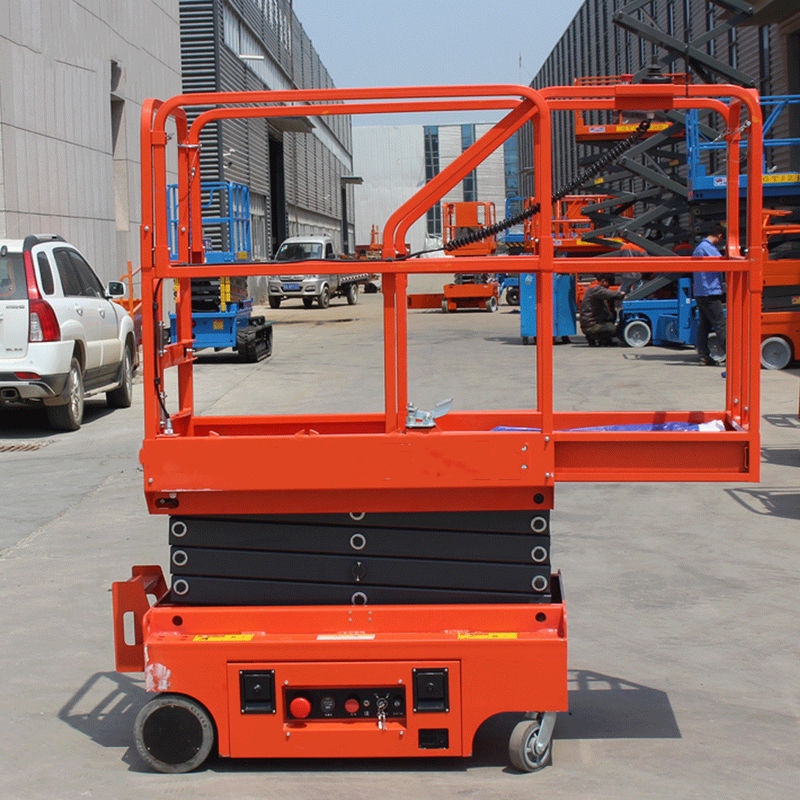

Portable Scissor Lift With Extendable Platform Lift Height 6m Multi Stage

Portable Scissor Lift With Extendable Platform Lift Height 6m Multi Stage

Portable Scissor Lift With Extendable Platform Lift Height 6m Multi Stage

Product Details:

Place of Origin: China
Brand Name: Yamei
Certification: CE, ISO9001, ISO14001
Model Number: JCPT0808HD

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Standard package suitable for container shipment
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 30 units 30 days
Contact Now
Detailed Product Description
Surface: Painting Color: Orange
Drive: Hydraulic Platform: Extendable
Control: Proportional Material: Manganese Steel

Electric Self Propelled Scissor Lift Aerial Work Platform Lift Height 6m Hydraulic Drive





Products advantages


Self propelled Scissor Lifts does not need any outriggers, one man operates on the working platform
Moving forward,turning around and lifting up are easily operated.
Short chargeable time and long dural time of the battery.
Easily moved, spacious working platforms, smooth working condition and high working efficiency





Standard features



● Proportional control

● Automatic Pothole Guard System

● Solid non-marking tires

● Auto brake system

● Emergency platform lowering system

● Emergency stop button

● Hour meter

● Motion alarm

● Electronic horn

● Extension platform

● Descent alarm

● Descent protection

● Tilt protection system

● Folding rails

● Protection bar around chassis



Portable Scissor Lift With Extendable Platform Lift Height 6m Multi Stage





  Portable Scissor Lift With Extendable Platform Lift Height 6m Multi Stage         Portable Scissor Lift With Extendable Platform Lift Height 6m Multi Stage  Portable Scissor Lift With Extendable Platform Lift Height 6m Multi Stage



Production Specification JCPT0808HD
Measurement
Working Height Max. 8m
A Platform Height Max. 6m
B Platform Height Stowed 1.86m
C Platform Length-outside 2.40m
Extended 3.30m
Slide-out Platform extension deck 0.90m
D Platform Width 0.81m
E Height-stowed: guardrail raised 2.20m
F Length-Stowed 2.43m
G Width 0.87m
H Wheel Base 1.87m
I Ground Clearance 10cm
J With Pothole Guards Deployed 1.9cm

Productivity
Max. Platform Occupancy 2
Lift Capacity 230kgs
Drive speed-stowed 4.0km/h
Drive speed-Raised 0.8km/h
Gradeability 25%
Max. Tilt 3°/ 1.5°
Turning Radius(inside) 0
Turning Radius(outside) 2.19
Raise/lower speed 24/54sec
Non-marking tires Φ381×127

Power
Power Source 24V/3.3KW
Battery

4x6V/225Ah
