Home ProductsElectric Scissor Lift

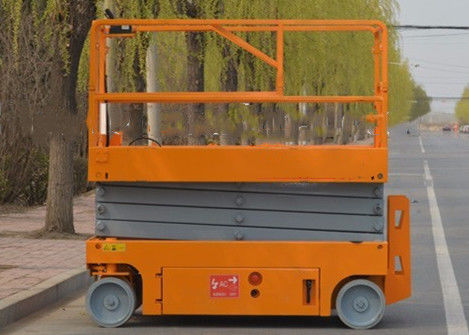

Norrow 8m Self Propelled Aerial Work Platform Electric Auto Brake System

Norrow 8m Self Propelled Aerial Work Platform Electric Auto Brake System

Norrow 8m Self Propelled Aerial Work Platform Electric Auto Brake System

Product Details:

Place of Origin: China
Brand Name: Yamei
Certification: CE, ISO9001, ISO14001
Model Number: JCPT1008DC

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Standard package suitable for container shipment
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 30 units 30 days
Contact Now
Detailed Product Description
Surface: Painting Color: Orange
Drive: Electric Material: Steel
Platform: Extendable Control: Proportional

Electric Scissor Lift Aerial Work Platform Norrow 8m Electric Drive



Products advantages


Self propelled Scissor Lifts does not need any outriggers, one man operates on the working platform
Moving forward,turning around and lifting up are easily operated.
Short chargeable time and long dural time of the battery.
Easily moved, spacious working platforms, smooth working condition and high working efficiency



The main parts are from famous brand suppliers.

All our platform are stable performance, flexible and smarter operation,more reliable as passed

by endurance test.

Yamei self propelled aerial working platform are designed to improve human aerial working condition.

Excellent for both indoor&outdoor construction, they’re operated ideallyin tight space making it’s easy for any maintenance and installation applications.



Standard features



● Cylinder holding valve
● Onboard diagnostic system

Flashing Beacon

All Motion Alarm

● Proportional control

● Automatic Pothole Guard System

● Solid non-marking tires

● Auto brake system

● Emergency platform lowering system

● Emergency stop button

● Hour meter

● Motion alarm

● Electronic horn

● Extension platform

● Descent alarm

● Descent protection

● Tilt protection system

● Folding rails

● Protection bar around chassis



Norrow 8m Self Propelled Aerial Work Platform Electric Auto Brake System





  Norrow 8m Self Propelled Aerial Work Platform Electric Auto Brake System         Norrow 8m Self Propelled Aerial Work Platform Electric Auto Brake System    Norrow 8m Self Propelled Aerial Work Platform Electric Auto Brake System





Production Specification JCPT1008DC
Measurement
Working Height Max. 10m
A Platform Height Max. 8m
B Platform Height Stowed 1.83m
C Platform Length-outside 2.40m
Extended 3.30m
Slide-out Platform extension deck 0.90m
D Platform Width 0.81m
E Height-stowed: guardrail raised 2.32m
F Length-Stowed 2.43m
G Width 0.87m
H Wheel Base 1.87m
I Ground Clearance 10cm
J With Pothole Guards Deployed 1.9cm

Productivity
Max. Platform Occupancy 2
Lift Capacity 230kgs
Drive speed-stowed 3.5km/h
Drive speed-Raised 0.8km/h
Gradeability 25%
Max. Tilt 3°/ 2°
Turning Radius(inside) 0
Turning Radius(outside) 2.19
Raise/lower speed 28/40sec
Non-marking tires Φ381×127

Power
Power Source 24V/3.3KW
Battery 4x6V/225Ah
