| Place of Origin: | China |
| Brand Name: | Yamei |
| Certification: | CE, ISO9001, ISO14001 |
| Model Number: | JCPT1008HD |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard package suitable for container shipment |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 units 30 days |
| Drive: | Hydraulic | Material: | Manganese Steel |
|---|---|---|---|
| Platform: | Extendable | Control: | Proportional |
| Color: | Orange | Surface: | Painting |

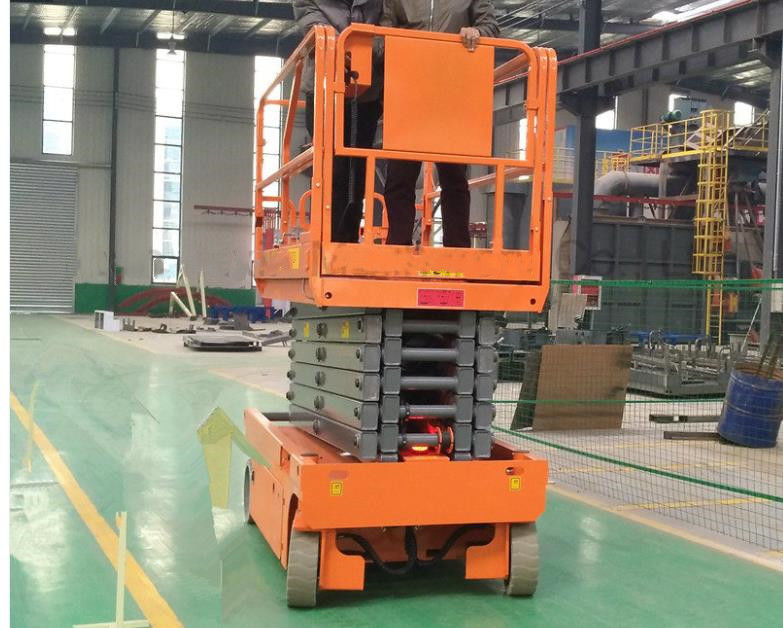

Self Propelled Scissor Lift Aerial Working Platform Norrow 8m Hydraulic Drive
Applications
It is widely used for aerial installation and maintenance of the working sites without power supply and with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse, granary,bus/railway stations, hotels,airports, gas station and aerial pipeline
Standard features
● Cylinder holding valve
● Onboard diagnostic system
● Flashing Beacon
● All Motion Alarm
● Proportional control
● Automatic Pothole Guard System
● Solid non-marking tires
● Auto brake system
● Emergency platform lowering system
● Emergency stop button
● Hour meter
● Motion alarm
● Electronic horn
● Extension platform
● Descent alarm
● Descent protection
● Tilt protection system
● Folding rails
● Protection bar around chassis
Production Specification
| Production Specification | JCPT1008HD |
| Measurement | |
| Working Height Max. | 10m |
| A Platform Height Max. | 8m |
| B Platform Height Stowed | 1.83m |
| C Platform Length-outside | 2.40m |
| Extended | 3.30m |
| Slide-out Platform extension deck | 0.90m |
| D Platform Width | 0.81m |
| E Height-stowed: guardrail raised | 2.32m |
| F Length-Stowed | 2.43m |
| G Width | 0.87m |
| H Wheel Base | 1.87m |
| I Ground Clearance | 10cm |
| J With Pothole Guards Deployed | 1.9cm |
| Productivity | |
| Max. Platform Occupancy | 2 |
| Lift Capacity | 230kgs |
| Drive speed-stowed | 3.5km/h |
| Drive speed-Raised | 0.8km/h |
| Gradeability | 25% |
| Max. Tilt | 3°/ 2° |
| Turning Radius(inside) | 0 |
| Turning Radius(outside) | 2.19 |
| Raise/lower speed | 28/40sec |
| Non-marking tires | Φ381×127 |
| Power | |
| Power Source | 24V/3.3KW |
| Battery | 4x6V/225Ah |
