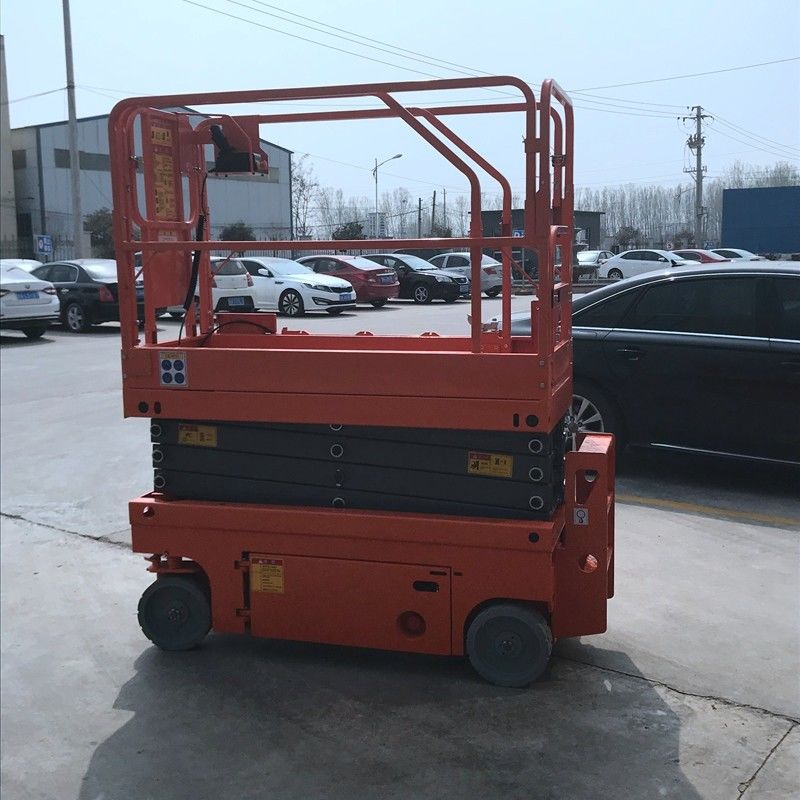

Manganese Steel Electric Aerial Reclaimer Orange Movable Lifting Platform

Manganese Steel Electric Aerial Reclaimer Orange Movable Lifting Platform

Manganese Steel Electric Aerial Reclaimer Orange Movable Lifting Platform

Product Details:

Place of Origin: China
Brand Name: Yamei
Certification: CE, ISO9001, ISO14001
Model Number: JCPT0807DC

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Standard package suitable for container shipment
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 30 units 30 days
Contact Now
Detailed Product Description
Material: Manganese Steel Surface: Painting
Color: Orange Drive: Electric
Platform: Extendable Control: Proportional

Self Propelled Scissor Lift Aerial Work Platform 5.8m Electric Drive



The main parts are from famous brand suppliers.

All our platform are stable performance, flexible and smarter operation,more reliable as passed

by endurance test.



Application



It is widely used for aerial installation and maintenance of the working sites without power supply and with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse, granary,bus/railway stations, hotels,airports, gas station and aerial pipeline.



Standard features



● Proportional control

● Automatic Pothole Guard System

● Solid non-marking tires

● Auto brake system

● Emergency platform lowering system

● Emergency stop button

● Hour meter

● Motion alarm

● Electronic horn

● Extension platform

● Descent alarm

● Descent protection

● Tilt protection system

● Folding rails

● Protection bar around chassis

● Cylinder holding valve
● Onboard diagnostic system

Flashing Beacon



Manganese Steel Electric Aerial Reclaimer Orange Movable Lifting Platform





Production Specification



   Manganese Steel Electric Aerial Reclaimer Orange Movable Lifting Platform         Manganese Steel Electric Aerial Reclaimer Orange Movable Lifting Platform   Manganese Steel Electric Aerial Reclaimer Orange Movable Lifting Platform





Production Specification JCPT0807DC
Measurement
Working Height Max. 7.8m
A Platform Height Max. 5.8m
B Platform Height Stowed 1.81m
C Platform Length-outside 1.81m
Extended 2.71m
Slide-out Platform extension deck 0.90m
D Platform Width 0.81m
E Height-stowed: guardrail raised 2.10m
F Length-Stowed 1.83m
G Width 0.87m
H Wheel Base 1.32m
I Ground Clearance 10cm
J With Pothole Guards Deployed 1.9cm

Productivity
Max. Platform Occupancy 2
Lift Capacity 230kgs
Drive speed-stowed 4.0km/h
Drive speed-Raised 0.8km/h
Gradeability 25%
Max. Tilt 3°/ 1.5°
Turning Radius(inside) 0
Turning Radius(outside) 1.71
Raise/lower speed 18/22sec
Non-marking tires Φ305×100

Power
Power Source 24V/3.3KW
Battery 4x6V/225Ah
