Lightweight Hydraulic Aerial Work Platform Flexible Auto Brake System

Lightweight Hydraulic Aerial Work Platform Flexible Auto Brake System

Lightweight Hydraulic Aerial Work Platform Flexible Auto Brake System

Product Details:

Place of Origin: China
Brand Name: Yamei
Certification: CE, ISO9001, ISO14001
Model Number: JCPT1412HD

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Standard package suitable for container shipment
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 30 units 30 days
Contact Now
Detailed Product Description
Surface: Painting Drive: Hydraulic
Color: Orange Control: Proportional
Material: Steel Platform: Extendable

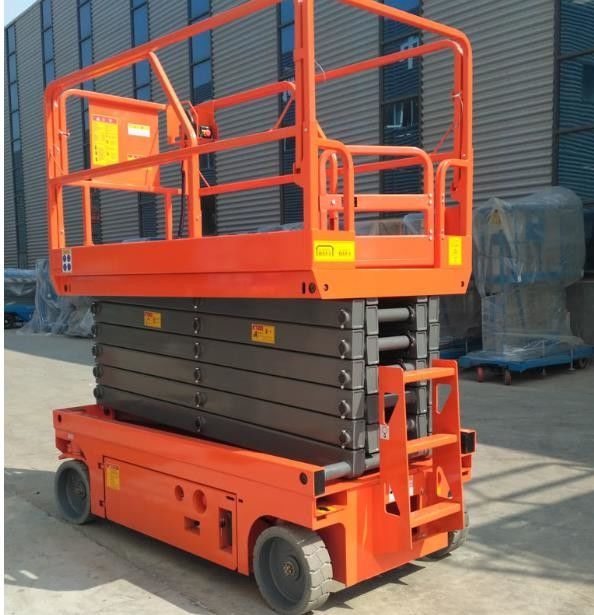

Self Propelled Scissor Lift Aerial Working Platform 11.8m Hydraulic Drive



Yamei self propelled aerial working platform are designed to improve human aerial working condition.

Excellent for both indoor&outdoor construction, they’re operated ideally in tight space making it’s easy for any maintenance and installation applications.

The main parts are from famous brand suppliers.

All our platform are stable performance, flexible and smarter operation,more reliable as passed

by endurance test.



Standard features



● Cylinder holding valve
● Onboard diagnostic system

Flashing Beacon

● Proportional control

● Automatic Pothole Guard System

● Solid non-marking tires

● Auto brake system

● Emergency platform lowering system

● Emergency stop button

● Hour meter

● Motion alarm

● Electronic horn

● Extension platform

● Descent alarm

● Descent protection

● Tilt protection system

● Folding rails

● Protection bar around chassis



Lightweight Hydraulic Aerial Work Platform Flexible Auto Brake System



Production Specification



  Lightweight Hydraulic Aerial Work Platform Flexible Auto Brake System          Lightweight Hydraulic Aerial Work Platform Flexible Auto Brake System   Lightweight Hydraulic Aerial Work Platform Flexible Auto Brake System



Production Specification JCPT1412HD
Measurement
Working Height Max. 14m
A Platform Height Max. 12m
B Platform Height Stowed 2.06m
C Platform Length-outside 2.43m
Extended 3.33m
Slide-out Platform extension deck 0.90m
D Platform Width 1.15m
E Height-stowed: guardrail raised 2.58m
F Length-Stowed 2.43m
G Width 1.21m
H Wheel Base 1.87m
I Ground Clearance 10cm
J With Pothole Guards Deployed 1.9cm

Productivity
Max. Platform Occupancy 2
Lift Capacity 230kgs
Drive speed-stowed 3.5km/h
Drive speed-Raised 0.8km/h
Gradeability 25%
Max. Tilt 3°/ 1.5°
Turning Radius(inside) 0
Turning Radius(outside) 2.33
Raise/lower speed 84/38sec
Non-marking tires Φ381×127

Power
Power Source 24V/3.3KW
Battery 4x6V/225Ah
