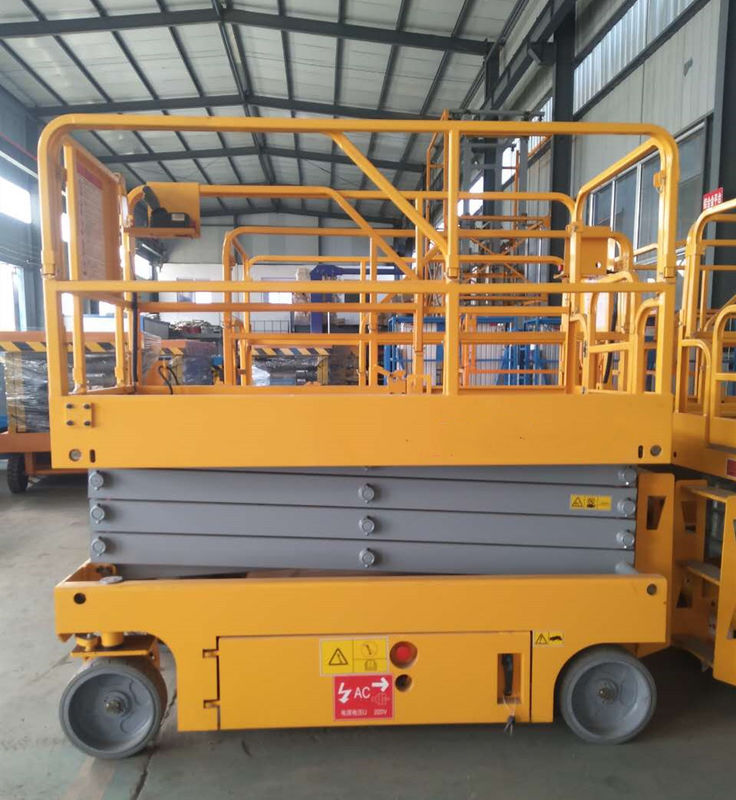

Hydraulic Electric Aerial Reclaimer 8m Electric Driven Flexible Operation

Hydraulic Electric Aerial Reclaimer 8m Electric Driven Flexible Operation

Hydraulic Electric Aerial Reclaimer 8m Electric Driven Flexible Operation

Product Details:

Place of Origin: China
Brand Name: Yamei
Certification: CE, ISO9001, ISO14001
Model Number: JCPT1012DC

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Standard package suitable for container shipment
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 30 units 30 days
Contact Now
Detailed Product Description
Color: Orange Surface: Painting
Material: Steel Platform: Extendable
Control: Proportional Tire: Solid Non-marking

Self Propelled Scissor Lift Aerial Working Platform 8m Electric Drive



Quality Assurance



The main parts are from famous brand suppliers.

We pass by ISO9001 quality management system and ISO4001 environment management system .

Our products are available with the CE mark conforming compliances with all relevant European Machinery Directives.

All our platform are stable performance, flexible and smarter operation,more reliable as passed

by endurance test.



Application



Yamei self propelled aerial working platform are designed to improve human aerial working condition.

Excellent for both indoor&outdoor construction, they’re operated ideallyin tight space making it’s easy for any maintenance and installation applications



Standard features



● Proportional control

● Automatic Pothole Guard System

● Solid non-marking tires

● Auto brake system

● Emergency platform lowering system

● Emergency stop button

● Hour meter

● Motion alarm

● Electronic horn

● Extension platform

● Descent alarm

● Descent protection

● Tilt protection system

● Folding rails

● Protection bar around chassis



Hydraulic Electric Aerial Reclaimer 8m Electric Driven Flexible Operation



Production Specification





     Hydraulic Electric Aerial Reclaimer 8m Electric Driven Flexible Operation         Hydraulic Electric Aerial Reclaimer 8m Electric Driven Flexible Operation   Hydraulic Electric Aerial Reclaimer 8m Electric Driven Flexible Operation



Production Specification JCPT1012DC
Measurement
Working Height Max. 10m
A Platform Height Max. 8m
B Platform Height Stowed 1.79m
C Platform Length-outside 2.43m
Extended 3.33m
Slide-out Platform extension deck 0.90m
D Platform Width 1.15m
E Height-stowed: guardrail raised 2.32m
F Length-Stowed 2.43m
G Width 1.21m
H Wheel Base 1.87m
I Ground Clearance 10cm
J With Pothole Guards Deployed 1.9cm

Productivity
Max. Platform Occupancy 2
Lift Capacity 450kgs
Drive speed-stowed 3.5km/h
Drive speed-Raised 0.8km/h
Gradeability 25%
Max. Tilt 3°/ 2°
Turning Radius(inside) 0
Turning Radius(outside) 2.33
Raise/lower speed 28/38sec
Non-marking tires Φ381×127

Power
Power Source 24V/3.3KW
Battery 4x6V/225Ah
