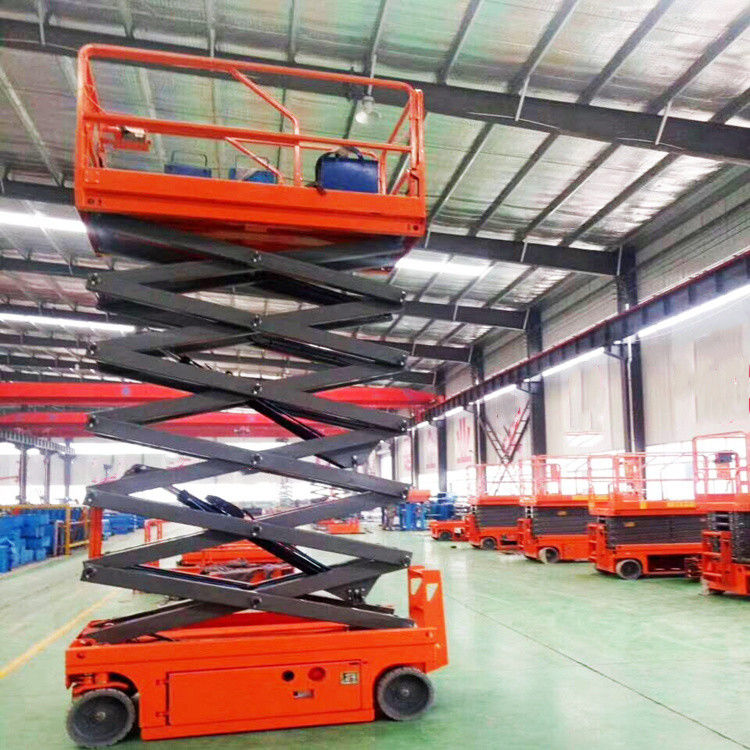

High Strength Movable Scissor Lift Extendable Scissor Lift Small Platform

High Strength Movable Scissor Lift Extendable Scissor Lift Small Platform

High Strength Movable Scissor Lift Extendable Scissor Lift Small Platform

Product Details:

Place of Origin: China
Brand Name: Yamei
Certification: CE, ISO9001, ISO14001
Model Number: JCPT1212DC

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Standard package suitable for container shipment
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 30 units 30 days
Contact Now
Detailed Product Description
Surface: Painting Drive: Electric
Color: Orange Material: Steel
Platform: Extendable Control: Proportional

Self Propelled Scissor Lift Aerial Working Platform 10m Electric Drive



Advantage



All our platform are stable performance, flexible and smarter operation,more reliable as passed

by endurance test.

The platform are designed to improve human aerial working condition.

Excellent for both indoor&outdoor construction, they’re operated ideallyin tight space making it’s easy for any maintenance and installation applications.

The main parts are from famous brand suppliers



Applications


It is widely used for aerial installation and maintenance of the working sites without power supply and with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse, granary,bus/railway stations, hotels,airports, gas station and aerial pipeline



Product Highlights

• User-friendly control
• All-steel frame with powder-coat finish
• Operated easily at both platform and ground controls
• Neatly removing guardrails make it easy to maneuver through height-restricted areas

• Rugged steel construction delivers durability for long lasting use

• Custom paint available



Standard features



● Proportional control

● Automatic Pothole Guard System

● Solid non-marking tires

● Auto brake system

● Emergency platform lowering system

● Emergency stop button

● Hour meter

● Cylinder holding valve
● Onboard diagnostic system

Flashing Beacon

All Motion Alarm

● Motion alarm

● Electronic horn

● Extension platform

● Descent alarm

● Descent protection

● Tilt protection system

● Folding rails

● Protection bar around chassis



High Strength Movable Scissor Lift Extendable Scissor Lift Small Platform



Production Specification





      High Strength Movable Scissor Lift Extendable Scissor Lift Small Platform          High Strength Movable Scissor Lift Extendable Scissor Lift Small PlatformHigh Strength Movable Scissor Lift Extendable Scissor Lift Small Platform



Production Specification JCPT1212DC
Measurement
Working Height Max. 12m
A Platform Height Max. 10m
B Platform Height Stowed 1.93m
C Platform Length-outside 2.43m
Extended 3.33m
Slide-out Platform extension deck 0.90m
D Platform Width 1.15m
E Height-stowed: guardrail raised 2.44m
F Length-Stowed 2.43m
G Width 1.21m
H Wheel Base 1.87m
I Ground Clearance 10cm
J With Pothole Guards Deployed 1.9cm

Productivity
Max. Platform Occupancy 2
Lift Capacity 320kgs
Drive speed-stowed 3.5km/h
Drive speed-Raised 0.8km/h
Gradeability 25%
Max. Tilt 3°/ 2°
Turning Radius(inside) 0
Turning Radius(outside) 2.33
Raise/lower speed 45/36sec
Non-marking tires Φ381×127

Power
Power Source 24V/3.3KW
Battery 4x6V/225Ah
