Extendable Mobile Hydraulic Scissor Lifting Platform For Maintenance

Extendable Mobile Hydraulic Scissor Lifting Platform For Maintenance

Extendable Mobile Hydraulic Scissor Lifting Platform For Maintenance

Product Details:

Place of Origin: China
Brand Name: Yamei
Certification: CE, ISO9001, ISO14001
Model Number: JCPT0807HD

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Standard package suitable for container shipment
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 30 units 30 days
Contact Now
Detailed Product Description
Material: Manganese Steel Surface: Painting
Color: Orange Drive: Hydraulic
Control: Proportional Platform: Extendable

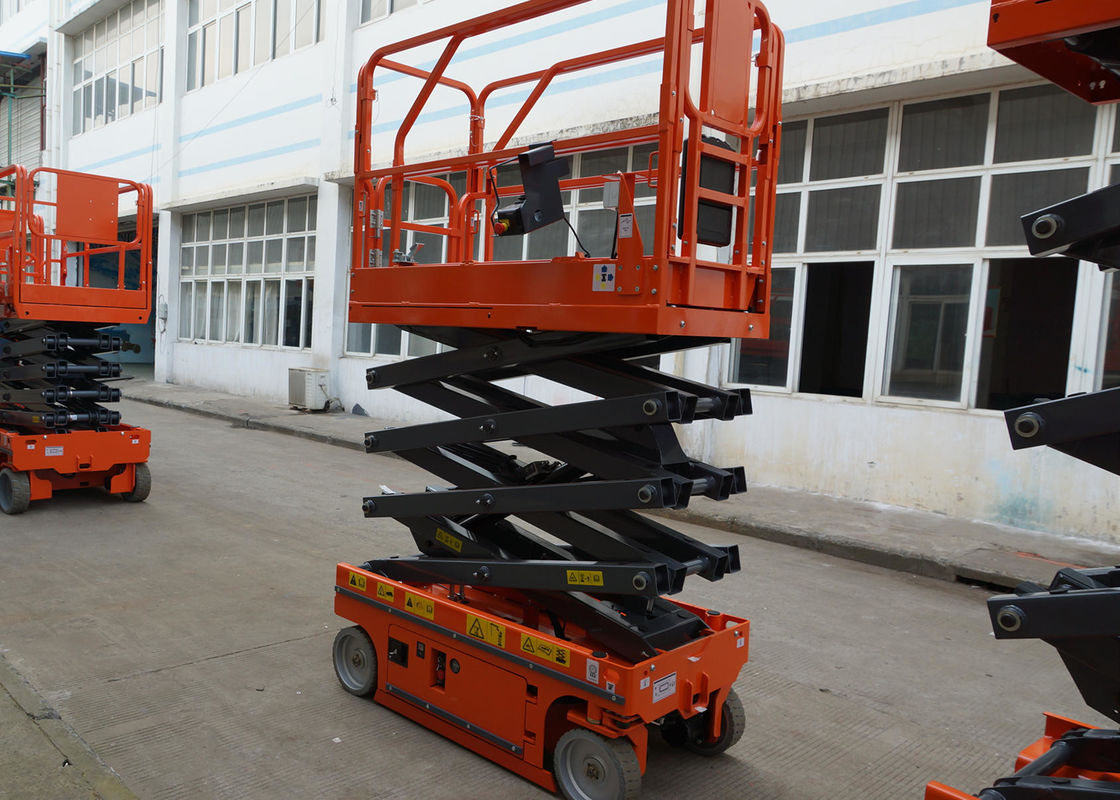

Self Propelled Scissor Lift Aerial Work Platform 5.8m Hydraulic Drive



Yamei self-propelled hydraulic and electric scissor lifts are designed to

improve human aerial working condition.

Excellent for both indoor&outdoor construction, they’re operated ideally

in tight space making it’s easy for any maintenance and installation applications



Application



Factory construction

Painting

Maintenance work

General overhead work





Standard features



● Proportional control

● Automatic Pothole Guard System

● Solid non-marking tires

● Auto brake system

● Emergency platform lowering system

● Emergency stop button

● Hour meter

● Motion alarm

● Electronic horn

● Extension platform

● Descent alarm

● Descent protection

● Tilt protection system

● Folding rails

● Protection bar around chassis
● Cylinder holding valve
● Onboard diagnostic system

Flashing Beacon

All Motion Alarm



Extendable Mobile Hydraulic Scissor Lifting Platform For Maintenance





 Extendable Mobile Hydraulic Scissor Lifting Platform For Maintenance        Extendable Mobile Hydraulic Scissor Lifting Platform For Maintenance   Extendable Mobile Hydraulic Scissor Lifting Platform For Maintenance



Production Specification JCPT0807HD
Measurement
Working Height Max. 7.8m
A Platform Height Max. 5.8m
B Platform Height Stowed 1.81m
C Platform Length-outside 1.81m
Extended 2.71m
Slide-out Platform extension deck 0.90m
D Platform Width 0.81m
E Height-stowed: guardrail raised 2.10m
F Length-Stowed 1.83m
G Width 0.87m
H Wheel Base 1.32m
I Ground Clearance 10cm
J With Pothole Guards Deployed 1.9cm

Productivity
Max. Platform Occupancy 2
Lift Capacity 230kgs
Drive speed-stowed 4.0km/h
Drive speed-Raised 0.8km/h
Gradeability 25%
Max. Tilt 3°/ 1.5°
Turning Radius(inside) 0
Turning Radius(outside) 1.71
Raise/lower speed 18/22sec
Non-marking tires Φ305×100

Power
Power Source 24V/3.3KW
Battery

4x6V/225Ah
