Aerial Operated Mobile Aerial Lift Equipment Smart Battery Power Supply With Long Time

Aerial Operated Mobile Aerial Lift Equipment Smart Battery Power Supply With Long Time

Aerial Operated Mobile Aerial Lift Equipment Smart Battery Power Supply With Long Time

Product Details:

Place of Origin: China
Brand Name: Yamei
Certification: CE, ISO9001, ISO14001
Model Number: JCPT1212HD

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Standard package suitable for container shipment
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 30 units 30 days
Contact Now
Detailed Product Description
Material: Steel Surface: Painting
Color: Blue Drive: Hydraulic
Control: Proportional

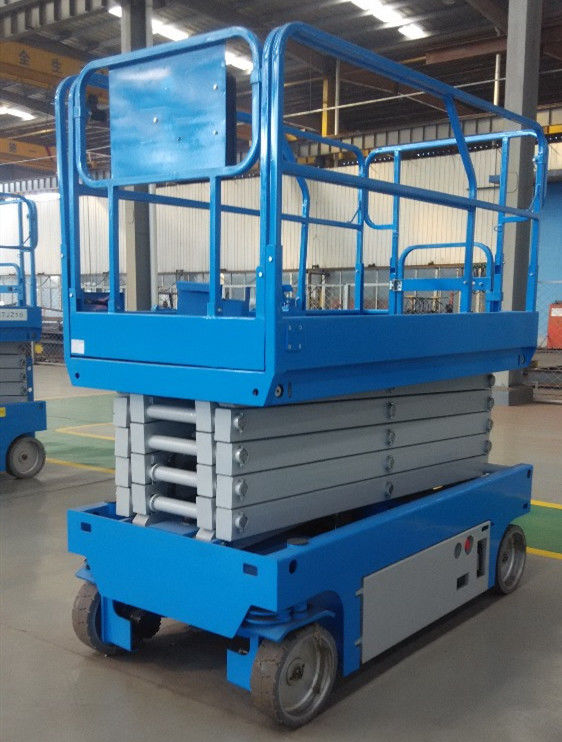

Self Propelled Scissor Lift Aerial Working Platform 10m Hydraulic Drive



Yamei self propelled aerial working platform are designed to improve human aerial working condition.

Excellent for both indoor&outdoor construction, they’re operated ideallyin tight space making it’s easy for any maintenance and installation applications.

The main parts are from famous brand suppliers.

We pass by ISO9001 quality management system and ISO4001 environment management system .

Our products are available with the CE mark conforming compliances with all relevant European Machinery Directives.

All our platform are stable performance, flexible and smarter operation,more reliable as passed

by endurance test.



Standard features



● Proportional control

● Automatic Pothole Guard System

● Solid non-marking tires

● Auto brake system

● Emergency platform lowering system

● Emergency stop button

● Hour meter

● Motion alarm

● Electronic horn

● Extension platform

● Descent alarm

● Descent protection

● Tilt protection system

● Folding rails

● Protection bar around chassis

● Cylinder holding valve
● Onboard diagnostic system

Flashing Beacon



Aerial Operated Mobile Aerial Lift Equipment Smart Battery Power Supply With Long Time



Production Specification



    Aerial Operated Mobile Aerial Lift Equipment Smart Battery Power Supply With Long Time          Aerial Operated Mobile Aerial Lift Equipment Smart Battery Power Supply With Long Time  Aerial Operated Mobile Aerial Lift Equipment Smart Battery Power Supply With Long Time





Production Specification JCPT1212HD
Measurement
Working Height Max. 12m
A Platform Height Max. 10m
B Platform Height Stowed 1.93m
C Platform Length-outside 2.43m
Extended 3.33m
Slide-out Platform extension deck 0.90m
D Platform Width 1.15m
E Height-stowed: guardrail raised 2.44m
F Length-Stowed 2.43m
G Width 1.21m
H Wheel Base 1.87m
I Ground Clearance 10cm
J With Pothole Guards Deployed 1.9cm

Productivity
Max. Platform Occupancy 2
Lift Capacity 320kgs
Drive speed-stowed 3.5km/h
Drive speed-Raised 0.8km/h
Gradeability 25%
Max. Tilt 3°/ 2°
Turning Radius(inside) 0
Turning Radius(outside) 2.33
Raise/lower speed 45/36sec
Non-marking tires Φ381×127

Power
Power Source 24V/3.3KW
Battery 4x6V/225Ah
