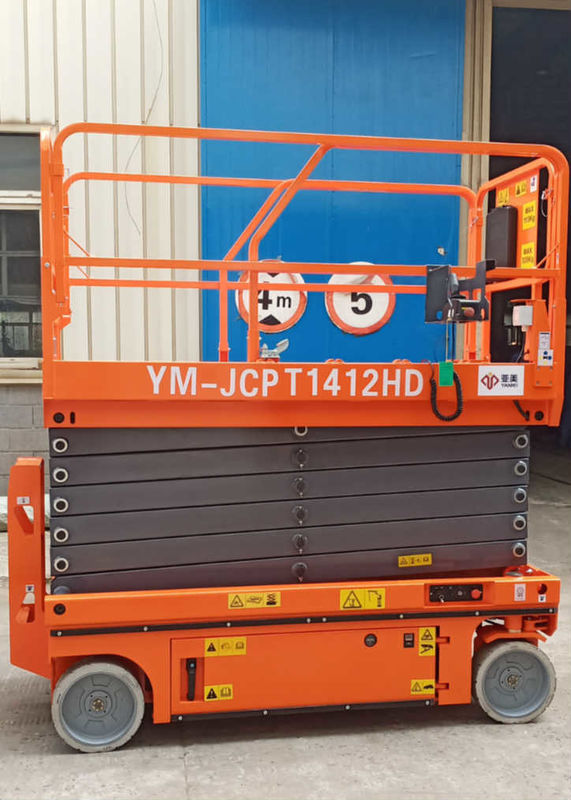

11.8m Hydraulic Scissor Lift Extendable Platform With Pothole Guarding

11.8m Hydraulic Scissor Lift Extendable Platform With Pothole Guarding

11.8m Hydraulic Scissor Lift Extendable Platform With Pothole Guarding

Product Details:

Place of Origin: China
Brand Name: Yamei
Certification: CE, ISO9001, ISO14001
Model Number: JCPT1412HD

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Standard package suitable for container shipment
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 30 units 30 days
Contact Now
Detailed Product Description
Surface: Painting Material: Steel
Platform: Extendable Color: Orange
Control: Proportional Guard Rail: Foldable

Self Propelled Scissor Lift Aerial Working Platform 11.8m Hydraulic Drive



Application



The self propelled aerial working platform are designed to improve human aerial working condition.

Excellent for both indoor&outdoor construction, they’re operated ideallyin tight space making it’s easy for any maintenance and installation applications.

All our platform are stable performance, flexible and smarter operation,more reliable as passed by endurance test.



Quality Assurance

The main parts are from famous brand suppliers.

We pass by ISO9001 quality management system and ISO4001 environment management system .

Our products are available with the CE mark conforming compliances with all relevant European Machinery Directives



Important features

● Battery drive,lower noise,non-pollution,suitable for all kinds of working environment
● Pothole protection Automatic, more secure, reliable
● Unidirection extended platform and reach work site quickly
● Automatic display of falut code for easy maintanence



Production Specification

11.8m Hydraulic Scissor Lift Extendable Platform With Pothole Guarding          11.8m Hydraulic Scissor Lift Extendable Platform With Pothole Guarding       11.8m Hydraulic Scissor Lift Extendable Platform With Pothole Guarding





Production Specification JCPT1412HD
Measurement
Working Height Max. 14m
A Platform Height Max. 12m
B Platform Height Stowed 2.06m
C Platform Length-outside 2.43m
Extended 3.33m
Slide-out Platform extension deck 0.90m
D Platform Width 1.15m
E Height-stowed: guardrail raised 2.58m
F Length-Stowed 2.43m
G Width 1.21m
H Wheel Base 1.87m
I Ground Clearance 10cm
J With Pothole Guards Deployed 1.9cm

Productivity
Max. Platform Occupancy 2
Lift Capacity 320kgs
Drive speed-stowed 3.5km/h
Drive speed-Raised 0.8km/h
Gradeability 25%
Max. Tilt 2°/ 3°
Turning Radius(inside) 0
Turning Radius(outside) 2.33
Raise/lower speed 84/38sec
Non-marking tires Φ381×127

Power
Power Source 24V/3.3KW
Battery 4x6V/225Ah
