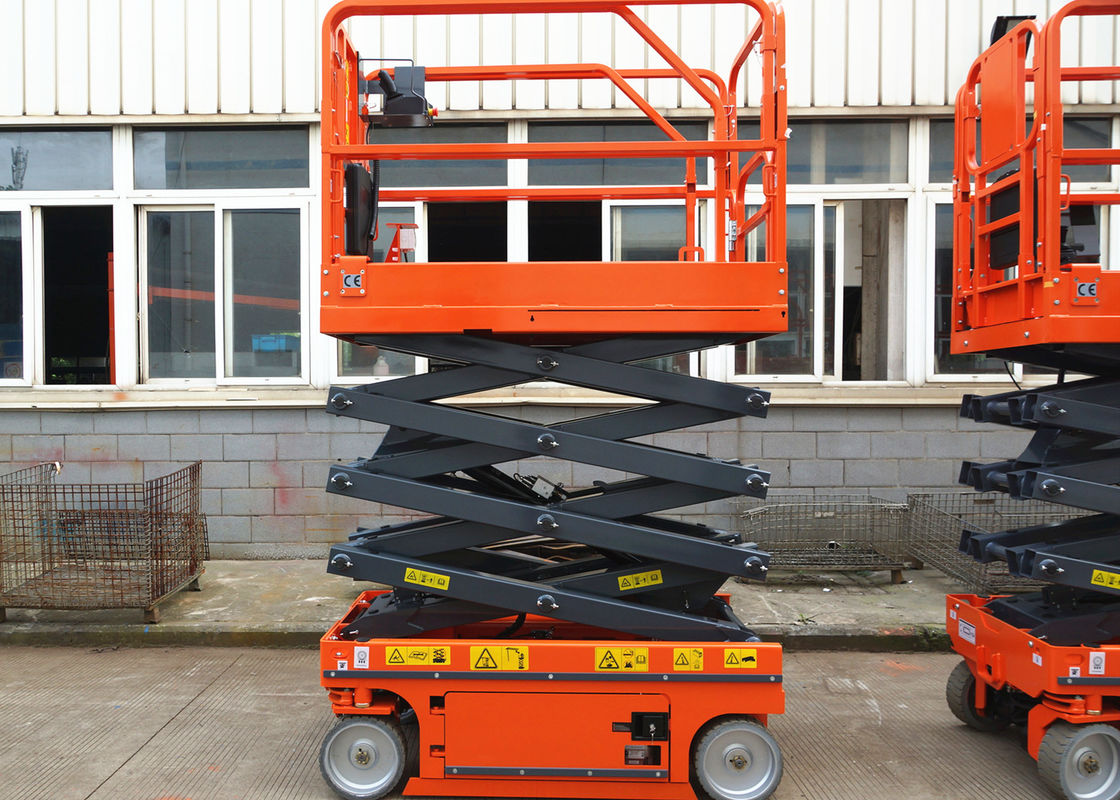

Scissor Lift 5.8m Elevated Work Platform Occupy Tight Space For Aerial Work

Scissor Lift 5.8m Elevated Work Platform Occupy Tight Space For Aerial Work

Scissor Lift 5.8m Elevated Work Platform Occupy Tight Space For Aerial Work

Product Details:

Place of Origin: China
Brand Name: Yamei
Certification: CE, ISO9001, ISO14001
Model Number: JCPT0807HD

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Standard package suitable for container shipment
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 30 units 30 days
Contact Now
Detailed Product Description
Material: Manganese Steel Surface: Painting
Color: Optional Drive: Hydraulic
Control: Proportional Platform: Extendable

Self Propelled Scissor Lift Aerial Work Platform 5.8m Hydraulic Drive



Yamei self-propelled hydraulic and electric scissor lifts are designed to

improve human aerial working condition.

Excellent for both indoor&outdoor construction, they’re operated ideally

in tight space making it’s easy for any maintenance and installation applications



Application



Factory construction

Painting

Maintenance work

General overhead work

It is widely used for aerial installation and maintenance of the working sites without power supply and with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse, granary,bus/railway stations, hotels,airports, gas station and aerial pipeline



Introduction:


1. The scissors lift tables storage battery as the power source, and makes low noise and no emission when working, so it can be used in indoor occasions such as workshops, warehouses, hotels, etc.
2. Larger working space: The platform can extend on one side, which can enlarge the working space.
3. Swing-out battery box and power module trays allow easy access to engine components for convenient service
4.Scissor platforms offer up to 25% gradeability when driving on slopes with safety protection.
5. Control box: there are control box not only on the platform but also on the chassis, easy to control.
6. Safety bar: The safe bar helps to support the unit as a duplicate protection when the machine need some maintenances.
7. Battery with charger: Trojan brand, import from USA, better service than normal battery.
8. Hydraulic motor: The hydraulic motor support the 2-front wheel driving with oil inlet pipe and oil outlet pipe conveying oil.



Standard features



● Proportional control

● Automatic Pothole Guard System

● Solid non-marking tires

● Auto brake system

● Emergency platform lowering system

● Emergency stop button

● Hour meter

● Electronic horn

● Extension platform

● Descent alarm

● Descent protection

● Tilt protection system

● Folding rails

● Protection bar around chassis
● Cylinder holding valve
● Onboard diagnostic system

Flashing Beacon

Motion Alarm



Scissor Lift 5.8m Elevated Work Platform Occupy Tight Space For Aerial Work





 Scissor Lift 5.8m Elevated Work Platform Occupy Tight Space For Aerial Work        Scissor Lift 5.8m Elevated Work Platform Occupy Tight Space For Aerial Work   Scissor Lift 5.8m Elevated Work Platform Occupy Tight Space For Aerial Work



Production Specification JCPT0807HD
Measurement
Working Height Max. 7.8m
A Platform Height Max. 5.8m
B Platform Height Stowed 1.81m
C Platform Length-outside 1.81m
Extended 2.71m
Slide-out Platform extension deck 0.90m
D Platform Width 0.81m
E Height-stowed: guardrail raised 2.10m
F Length-Stowed 1.83m
G Width 0.87m
H Wheel Base 1.32m
I Ground Clearance 10cm
J With Pothole Guards Deployed 1.9cm

Productivity
Max. Platform Occupancy 2
Lift Capacity 230kgs
Drive speed-stowed 4.0km/h
Drive speed-Raised 0.8km/h
Gradeability 25%
Max. Tilt 3°/ 1.5°
Turning Radius(inside) 0
Turning Radius(outside) 1.71
Raise/lower speed 18/22sec
Non-marking tires Φ305×100

Power
Power Source 24V/3.3KW
Battery

4x6V/225Ah
